Eurorack fixed high pass filter

by Chuck Housley

Tagged as projects


alt

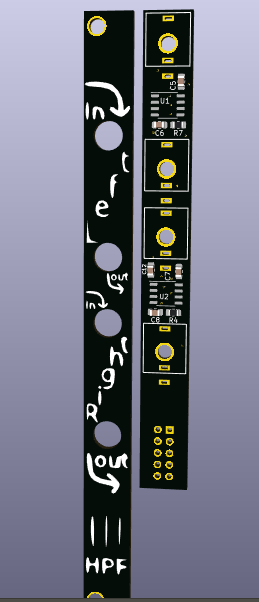

Designed in kicad 5.

I designed an undergrad-homework-level filter to use as an end-of-chain DC blocker. It technically works but there was a noticeable drop in signal due to a lack of gain boosting at the end of the schematic. I added the missing resistors but never ordered another prototype.
